BEYOND THE WHEEL

the new era of magnetic sliding

Ironlev Magnetic suspension is obtained by coupling a magnetic slider (equipped with permanent magnets) with an iron rail, enabling to bear loads up to 1500 kg without any electricity.
The levitation removes any sliding friction and component wear so the movement is freed from the weight, overcoming the limits due to the wheel.

Magnetic levitation sliding system for minimal frame windows.
The slider Slim enables to upgrade to magnetic sliding, adapting to the most compact sections.

MOVING LIGHTNESS

The window moves along the rail effortlessly and without any sliding friction, overcoming the weight limits of traditional wheeled systems.

Pulling force of 2 kg for a 600 kg doorTested with doors up to 1500 kg

MODULARITY

The composition of the sliders allows to determine the number of sliders as a function of the sash weight.
Unlike traditional wheel systems, magnetic levitation distributes the weight of profile and glass evenly among each slider, making it possible to design large openings with minimal frames.

Single or double module

RELIABILITY

The extremely low wear of the elements composing the slider ensures high durability and lifetime. The system is designed and tested for superior performances in terms of corrosion resistance.

N° 100.000 cycles tested
1.000 hours in salt spray environment

The Ironlev system is designed for easy and safe installation.
The sliders are assembled by using special accessories that guide the system in the proper position.
In addition, the system includes junction and rail fixing elements.

SAFETY

The slider is intrinsically safe: the magnetic field is totally confined insider slider section, eliminating external magnetic dispersions. This allows an adoption inside domestic environments by placing the system in the lower node, inside the frame.

μT within standards

FLEXIBILITY AND COMPATIBILITY

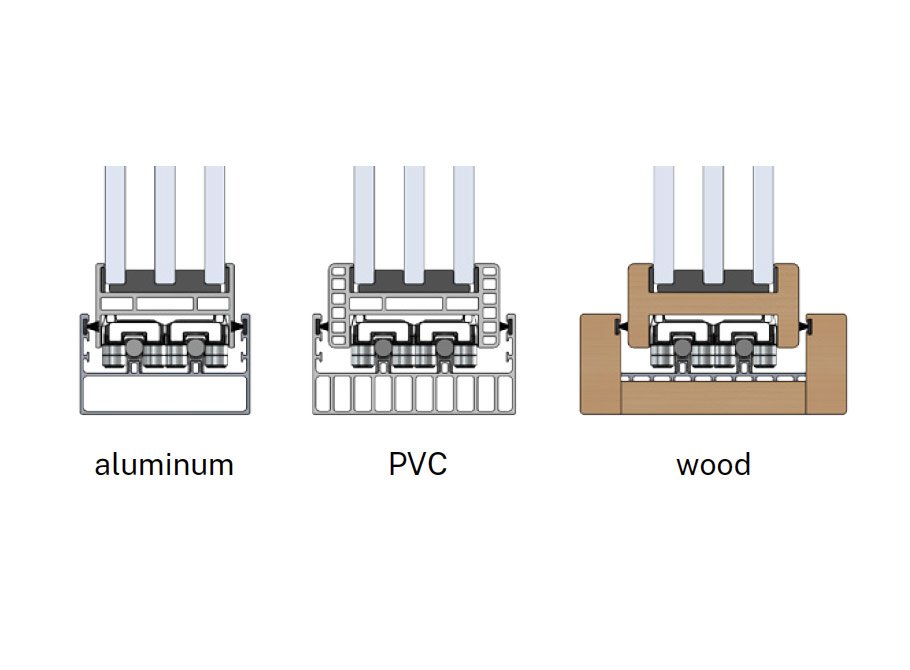

Ironlev sliders are compatible with frames of different materials, by adapting connection interfaces to facilitate installation and to maintain thermal insulation performances.

MANY CONFIGURATIONS

Magnetic suspension enables the adoption of multiple sliders aligned to distribute equally the load.
The system is available in different configurations, single rail for extremely compact frames, double rail for higher loads or it can be recessed for a beautiful, flush threshold.
